Carbides in 15V

In December 2022, I purchased one of the Spyderco Manix 2 sprint run knives in 15V steel produced with the heat treatment developed by Shawn Houston (Triple B Handmade knives) that produces an impressive Rockwell hardness of 65 HRC. CPM 15V steel from Crucible Industries (datasheet) is a high vanadium (14.5% by weight) wear resistant tool steel. This example is particularly interesting because high carbide knife steels are often deliberately produced with lower hardness to increase the macro-scale toughness.  My focus is not on resistance to large scale chipping or breaking of the tip, but rather on whether this steel can take and hold a relatively fine edge with usage that would be considered abusive for a high-end kitchen knife, but considered light duty for a bushcraft/survival knife.

The factory edge had the same character as observed in other Spyderco high carbide factory edges, with the carbides exposed by buffing.

SEM image of the factory edge on the Spyderco 15V Manix.

To identify the edge failure mechanisms, I made repeated cuts of 1/4 inch sisal rope with this factory edge. The cuts were performed using just a 1/2 long section of blade with a 1:1 slice ratio and a block of end-grain pine as a cutting board. Examination of the edge after 100 rope cuts shows both small chips and relatively undamaged areas.

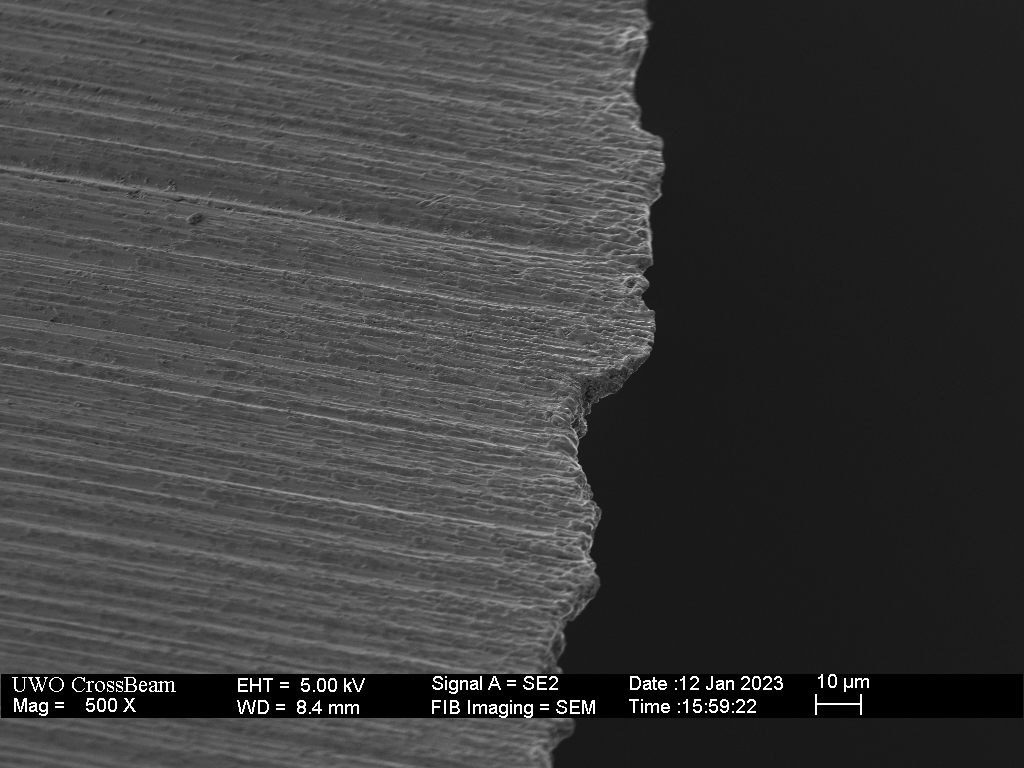

SEM image of the factory edge of the 15V knife after 100 sisal rope cuts. Both chips and relatively undamaged regions are visible.

A close-up of a chip shows an adjacent area that is relatively undamaged.

One of several large chips that were apparent even with low optical magnification.

A cross-section was made in an undamaged area of the rope cutting region. The apex cross section measures 30 degrees with slight deflection off center. This is the factory edge sharpening angle. No apparent carbide damage is observed at this location. It is anticipated that the high hardness of the matrix minimizes the flexing of the apex that leads to carbide damage.

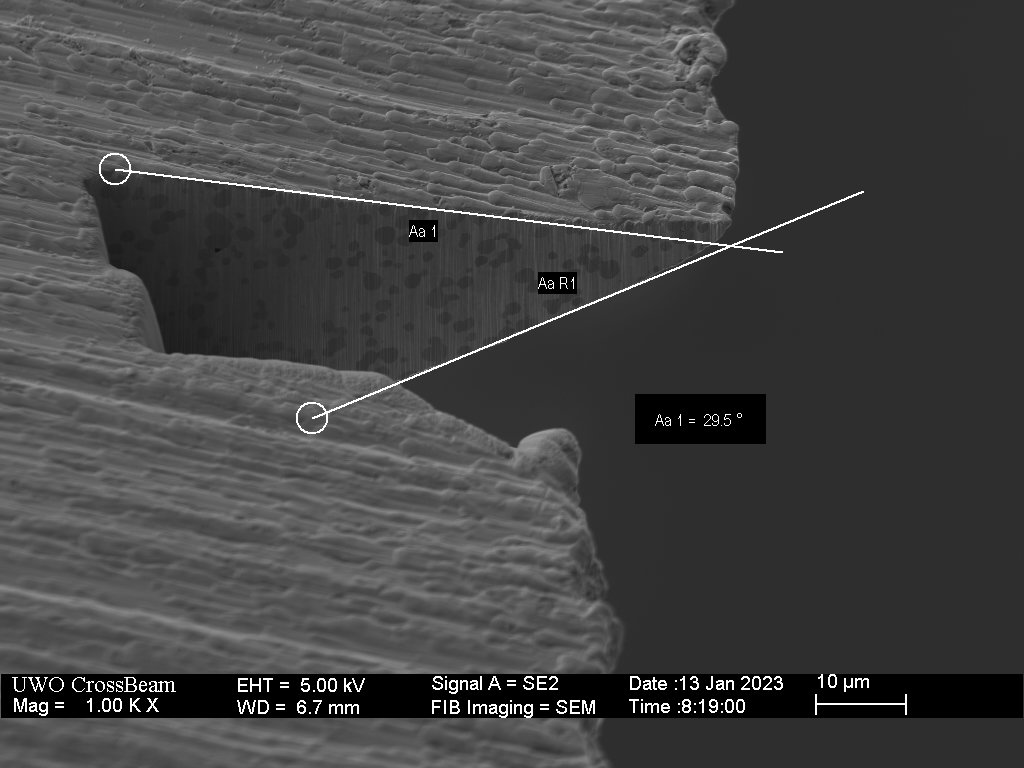

Cross-section of a region that was not chipped during the 100 rope cuts reveals the original factory angle of 30 degrees. 
Cross-section of a region that was not chipped during the 100 rope cuts. The apex is very slightly blunted and deflected slightly (up in this image). Carbide damage appears inconsequential.

To characterize the microstructure of the steel in this knife, I polished a small area near the tip and performed SEM backscatter imaging and elemental x-ray analysis.

The contrast-thresholded SEM image of the polished 15V surface shows well dispersed vanadium carbides (black) in the iron matrix (white).

SEM backscatter electron image of the polished 15V blade steel. Dark regions are vanadium carbides.

Image analysis software was used to determine the size distribution and volume fraction. The size distribution shows typical diameters near 1 micron with very few over 2 microns. The carbides are well dispersed (unlike the S110V example) which is expected to minimize carbide-on-carbide damage during flexing of the steel.

The image analysis also provides a carbide volume of 22% in the polished region.

Energy Dispersive X-ray analysis shows vanadium carbides with some molybdenum in-diffusion leaving essentially pure vanadium carbide cores and molybdenum-doped vanadium carbide shells. The matrix material is composed of iron and chromium with some molybdenum and carbon.

To better evaluate this steel, I re-sharpened this knife several times using different techniques and used it for various cutting tasks. In the example I show here, I first used a DMT Coarse diamond plate to freehand thin the blade to about 25 degrees inclusive. Although some microchipping occurred, the steel performed quite well at this relatively low angle.

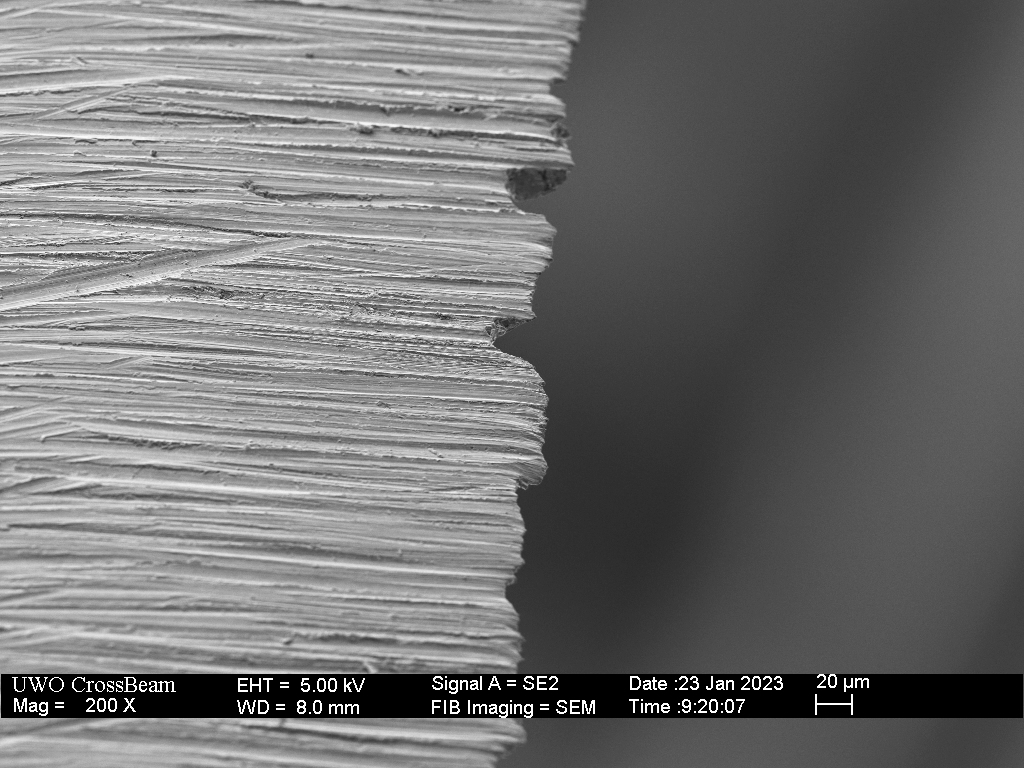

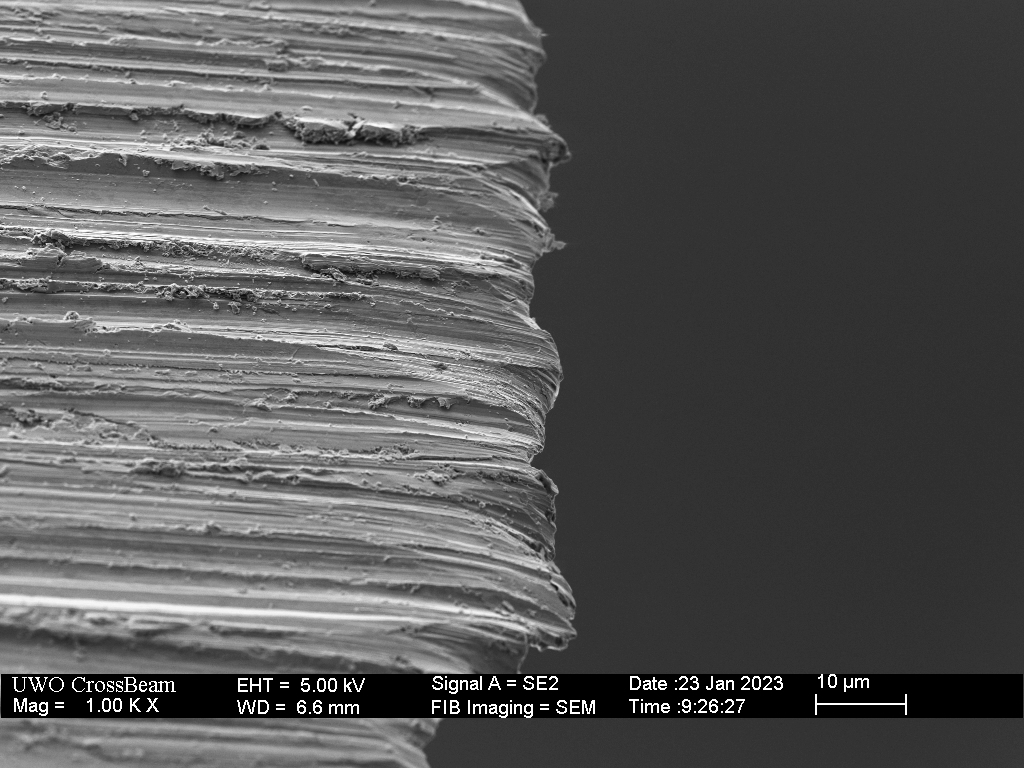

SEM image of the 15V Manix edge after sharpening with the DMT Coarse plate. Two chips are visible.
I made every effort to minimize the burr formation during this sharpening, flipping sides frequently and stopping when a burr could be felt.
Cross section of the DMT-C sharpening blade displays inconsequential carbide damage within the sharpening triangle, even at this relatively low angle. The burr (outside the triangle) is damaged with some swarf adhering to the bottom side.

With the blade thinned to 25 degrees, I moved to a Wicked Edge 1500 grit diamond hone at 14 degrees per side (28 inclusive). Unlike the DMT coarse which primarily burnishes and removes steel via adhesive wear, this diamond plate is abrasive, cutting both carbides and matrix, evidenced by the fact that whole carbides are visible among the abrasive striations. 

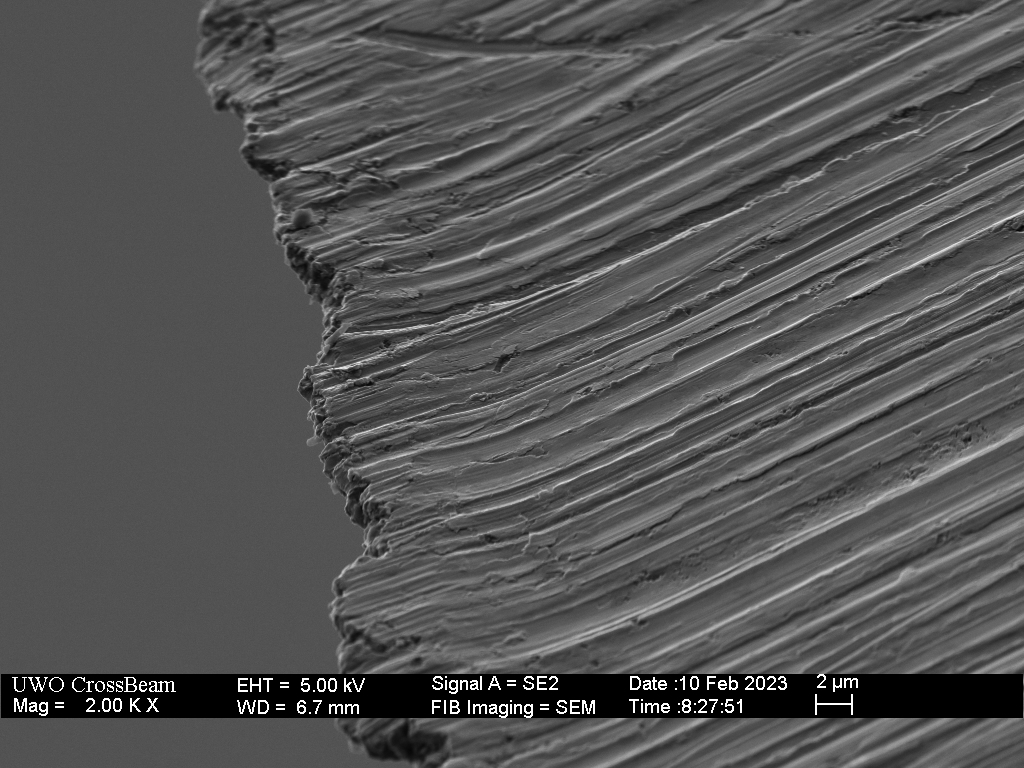

SEM images of the blade following sharpening with a Wicked Edge 1500 grit diamond plate at 14 degrees per side. A small burr is evident in the discontinuity of the striations near the apex.
Cross-section of the 15V blade following sharpening with a Wicked Edge 1500 grit diamond plate at 14 degrees per side. A small burr can be observed outside the sharpening triangle.

The fixed angle of the Wicked Edge sharpening jig helps to minimize the burr as the alternating side strokes will always contact the burr.

To remove the burr and refine the edge further, I used a 4k EdgePro resin diamond hone affixed to a Wicked Edge paddle. The sharpening angle was targeted at 15 degrees per side. I show cross-sections at two locations below.

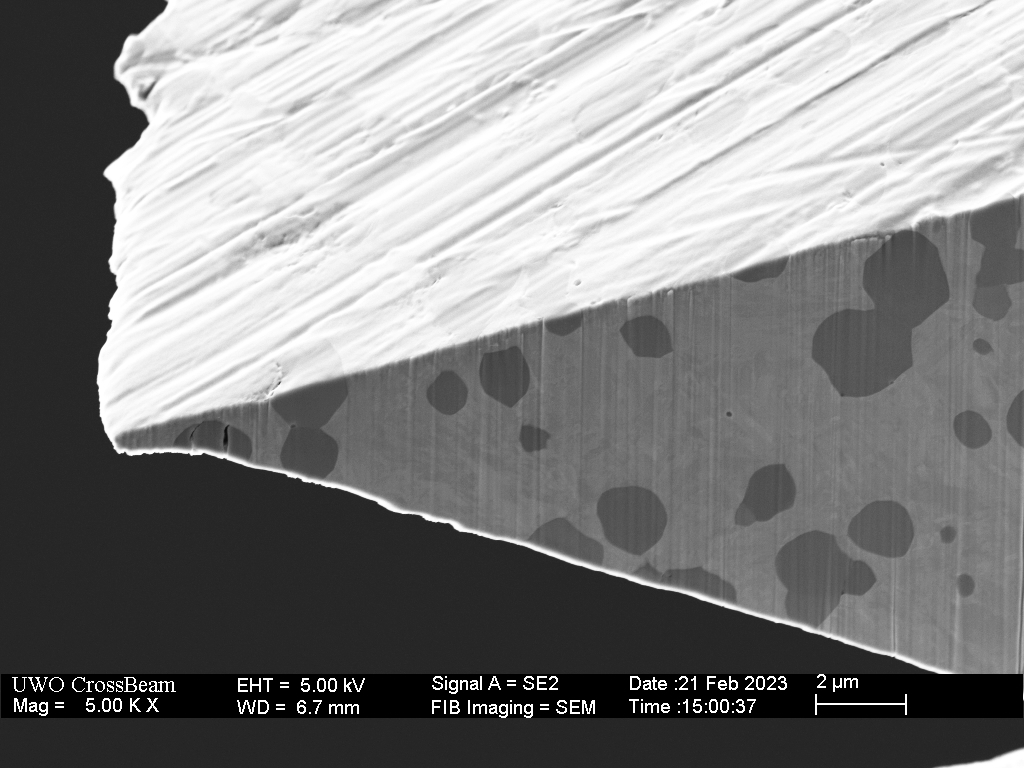

SEM image of a cross-section through the 15V knife after sharpening with a 4K diamond resin hone. A small burr remains and a broken carbide is exposed at the point where that burr will have flexed during sharpening.

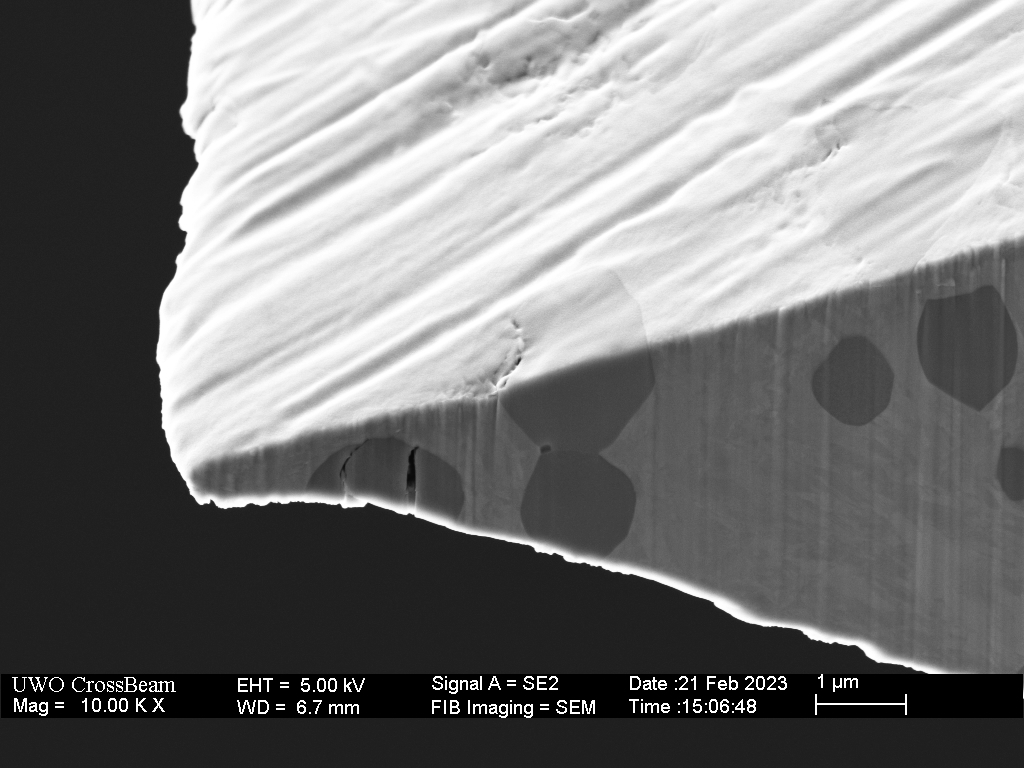

Close-up SEM image of a cross-section through the 15V knife after sharpening with a 4K diamond resin hone. A small burr remains and a broken carbide is exposed.
SEM image of a second cross-section through the 15V knife after sharpening with a 4K diamond resin hone. A minimal burr remains at this location but cracking in an exposed carbide cluster is evident.
Close-up SEM of the cracked carbide cluster.

The final step was to strop on a double-sided, diamond-loaded kangaroo tail leather paddle strop; 1.0 micron followed by 0.25 micron. The 0.25 micron alone was unable to remove sufficient material, presumably because this is an extremely wear resistant steel.

SEM image of the 15V blade after the final stropping step.

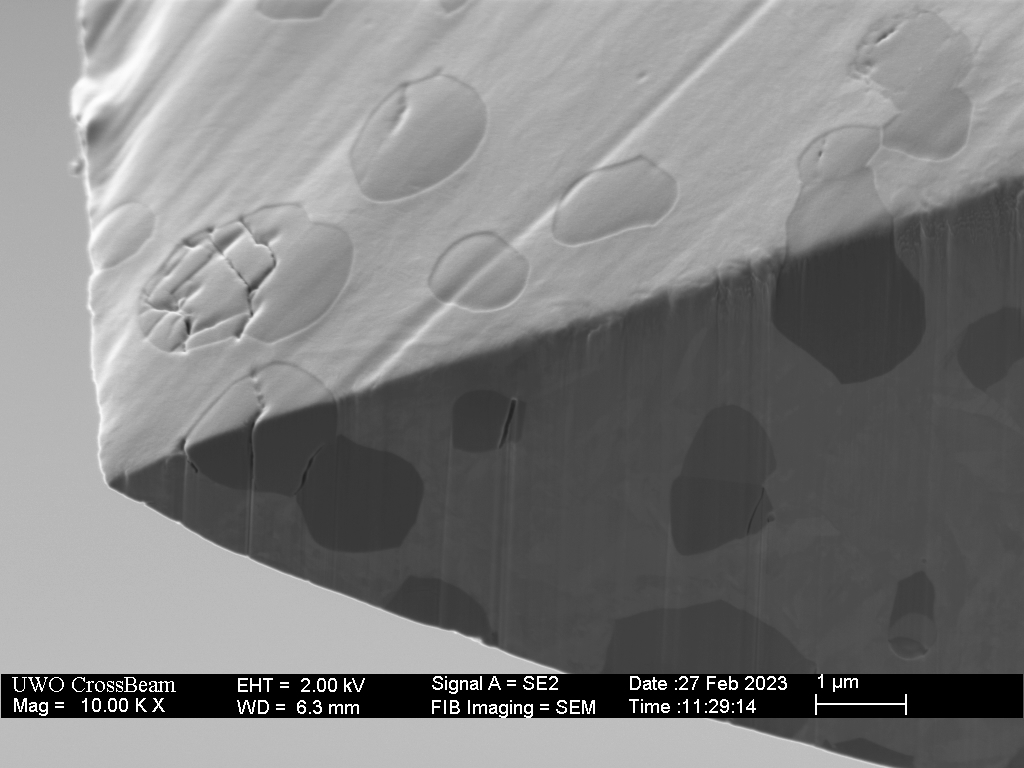

Close-up SEM of the apex following the diamond stropping steps. A keen “shaving” edge is observed with a fully shaped carbide in the apex. A broken carbide is visible on the surface, just away from the apex.
SEM image of the image of the 15V blade after stropping show no change to the angle except at the very last micron of the edge.

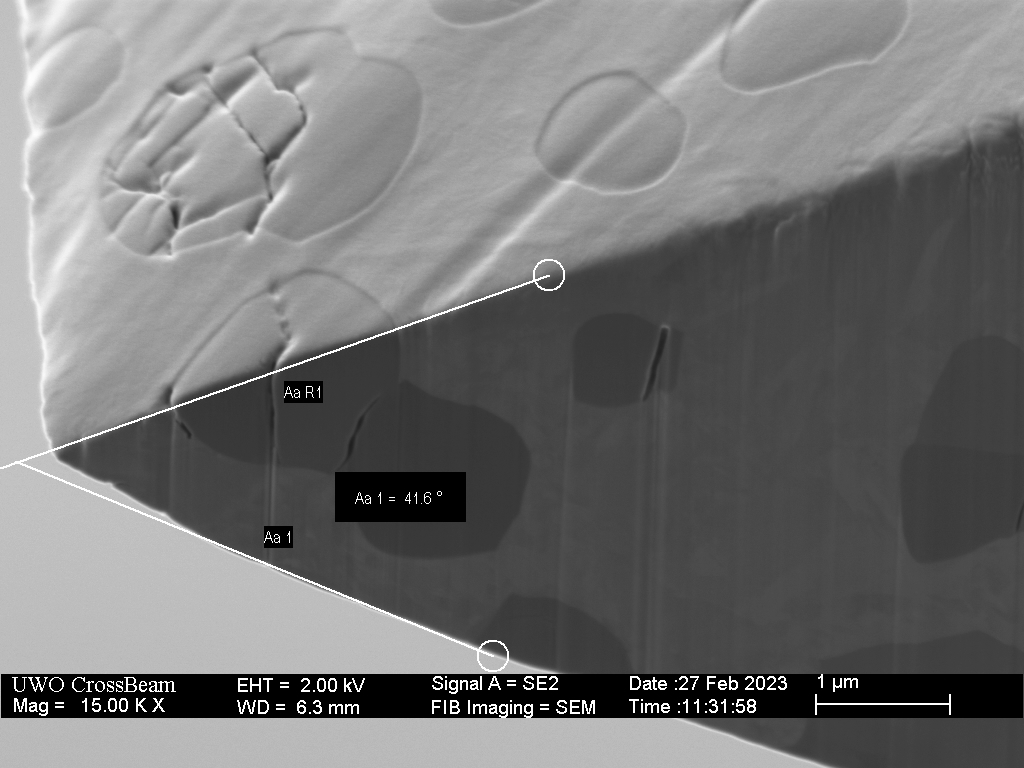

SEM image a cross-section through the 15V blade after the stropping steps. As expected, stopping has micro-convexed the apex, leaving an approximate 40 degree angle over the last few microns.

To test the effectiveness of the keen edge, I repeated the same sisal rope cutting as was done with the factory edge. The first 20 or so cuts were practically effortless and cutting required increasingly more force as the edge degraded. Below, I show cross-sections at 3 places in the cutting edge following the 100 cuts.

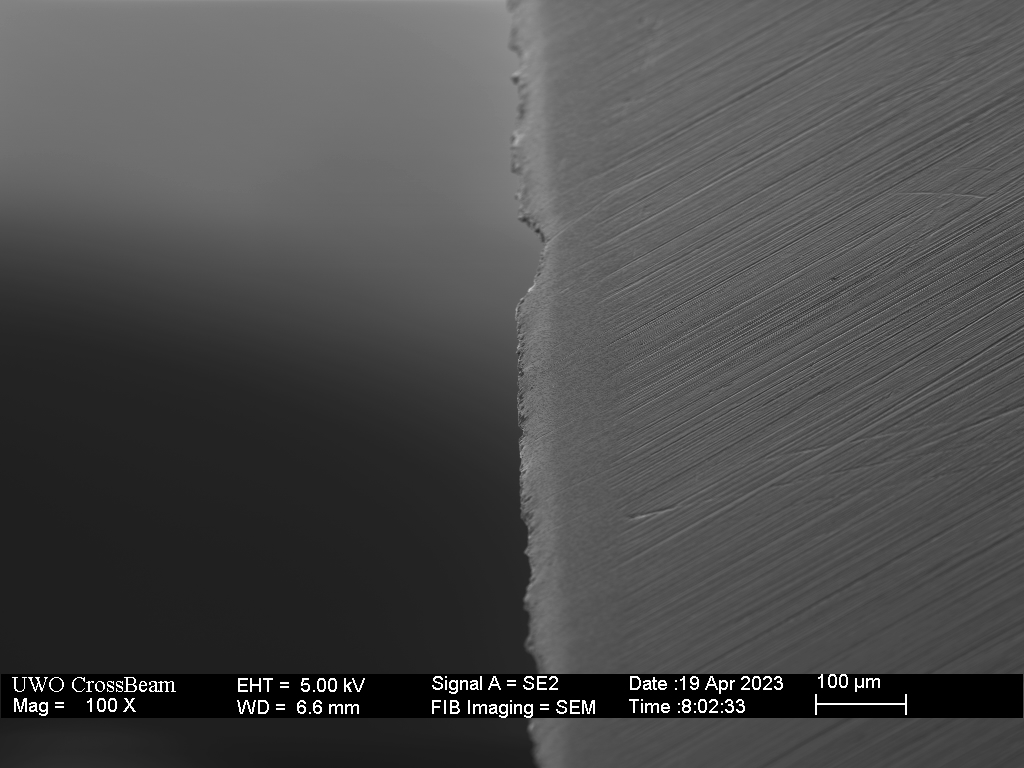

SEM image of the keen-edged 15V blade after 100 sisal rope cuts. Some chipping is evident.
SEM image of a cross-section at the largest chip shows a clean break with a textured, carbide-embedded surface remaining in the squared off area.

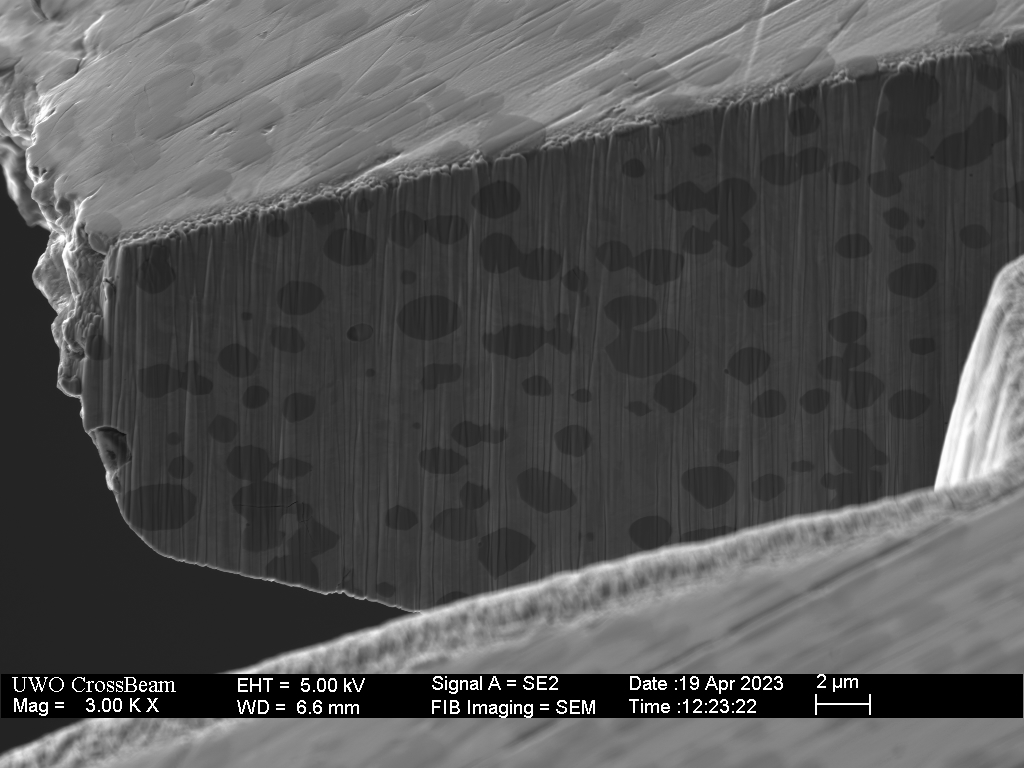

SEM Image of a cross-section through a blunted area of the initially keen-edged 15V blade after 100 rope cuts. Some cracking is evident in the surface and two carbides exposed by the cross-section show cracks.

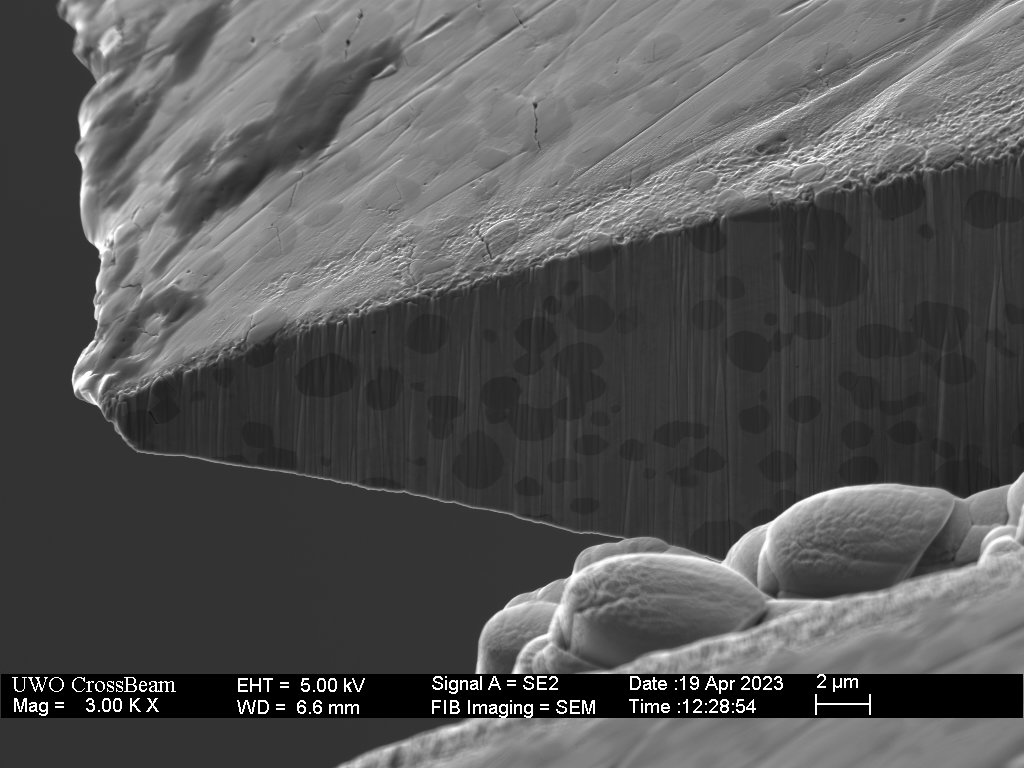

SEM Image of a cross-section through a slightly blunted area of the initially keen-edged 15V blade after 100 rope cuts. The exposed carbides are undamaged.

The goal here is not to quantify edge retention, but to visualize the microscopic degradation of the knife edge. For comparison, I show a contrasting example of a the same 100 rope cuts using a simple steel Victorinox paring knife with a “dual grit” edge prepared by Gabe Kirkwood (TheHomeSlice on youtube). Unlike the 15V steel, the softer Victorinox displays deformation and a large roll. 

SEM image of the “dual-grit” burr edge on a Victorinox paring knife after 100 sisal rope cuts. The edge is very slightly blunted in the lower part of the image and severely rolled in the upper part of the image.

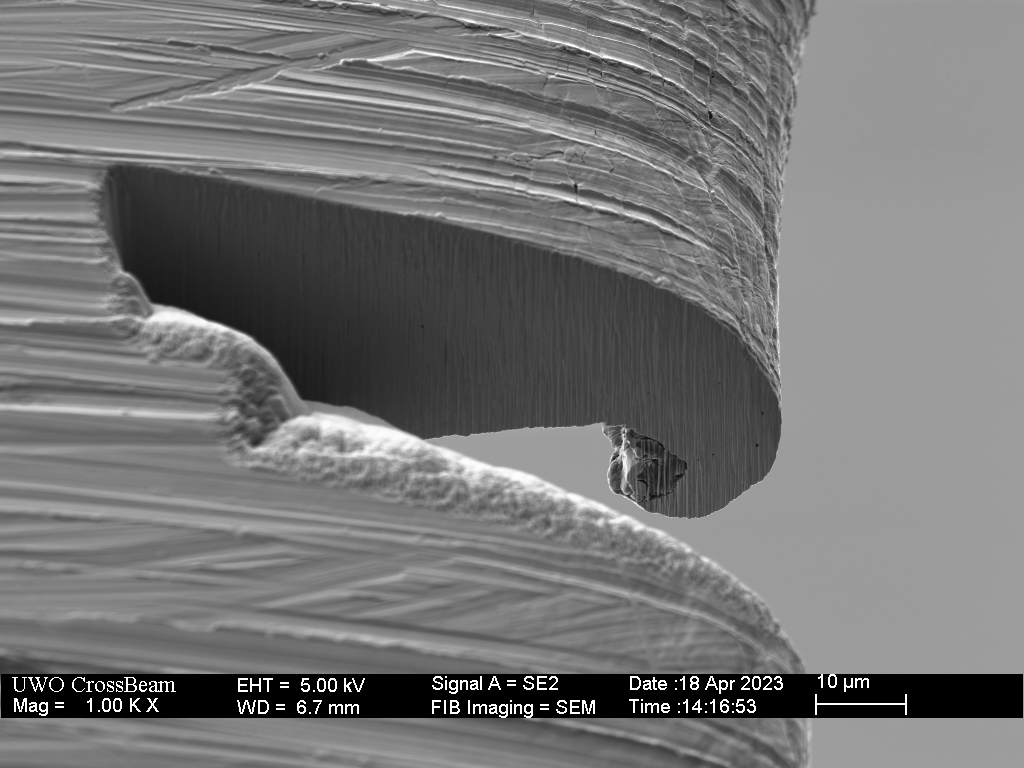

SEM image of the cross-section through a roll in the Victorinox “dual-grit” burr edge sustained during the 100 sisal rope cuts. The roll is much larger than just the as-sharpened refined burr.

Both the microchips in the 15V and the roll in the Victorinox impede the slicing performance, even though they constitute just fraction of the cutting edge. The microchipped 15V will retain some slicing aggression due to the carbide texture. The surface of the roll is dead-smooth. In normal use we could simply avoid this part of the edge and continue to cut well beyond 100 slices. Again, I am not trying to quantify edge retention, only identify the failure modes. The 15V blade shows no evidence of mushrooming or rolling, certainly due to the high hardness of the matrix.  The wear resistance imparted by the high carbide volume prevents blunting via abrasion. Failure seems to occur through chipping as with other high carbide steels, eventually leaving a rough, squared-off ceramic knife type edge. 

The 30 degree inclusive edge performs well with moderate cutting tasks like rope and cardboard, but not surprisingly does chip when subjected to riskier usage such as cutting 14 gauge copper wire (shown below). A knife is not the appropriate tool for that task, particularly one that is not readily replaceable. The image below show a good sized chip that was formed while cutting the copper wire.

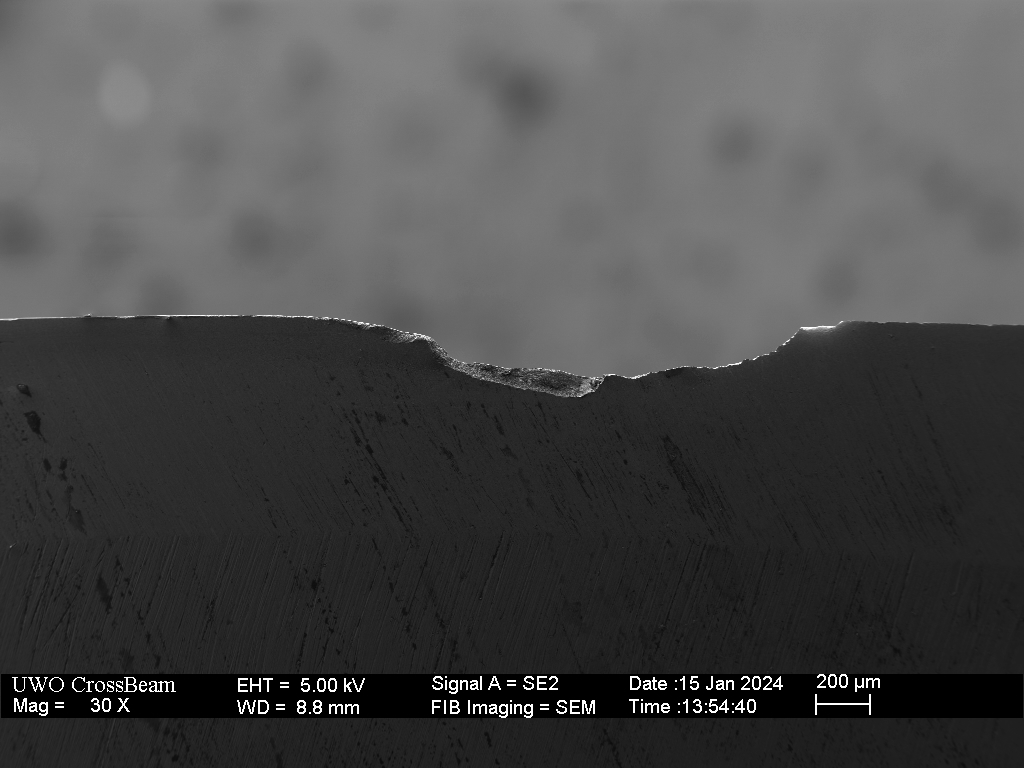

A relatively large chip formed in the edge of the 15V knife (sharpened at 30 degrees inclusive) while cutting 14 gauge copper wire.
Close-up SEM image SEM image of the broken surface of the chip, shows carbides both broken and separated at the margin of the matrix.

Final Thoughts

The high hardness of the matrix combined with a large concentration of 1-2 micron vanadium carbides that are well dispersed results in a steel that can take and maintain a reasonably thin and refined edge with moderate use. As with the other high carbide steels (K390, Maxamet, S110V) I see little evidence of abrasive wear contributing to edge deterioration, suggesting that traditional CATRA testing (using silica impregnated cardstock) may not be particularly informative for this class of steels. Anecdotally, it was a pleasure using this knife over the past year.
