Abrasive Particles under the SEM

Here is a selection of SEM images of various abrasive particles:

HA_CrOx_03

chromium oxide

HA_CrOx_01

chromium oxide

HA_CrOx_02

chromium oxide

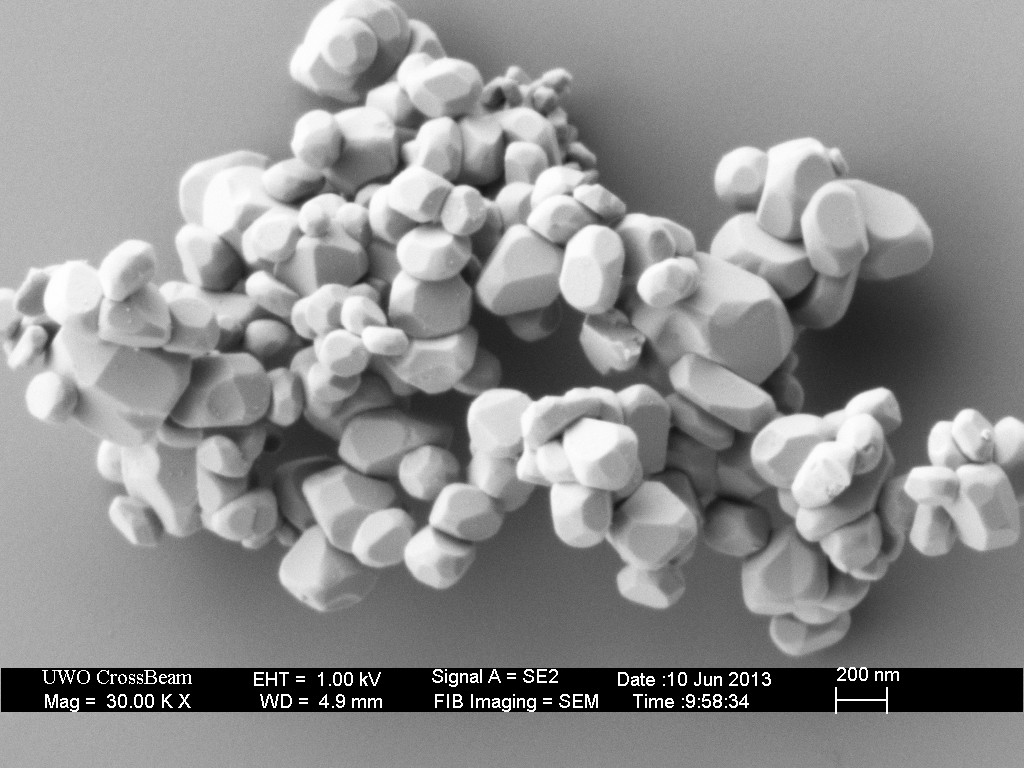

HA_CrOx_04

chromium oxide

poly_diamond_100nm_02

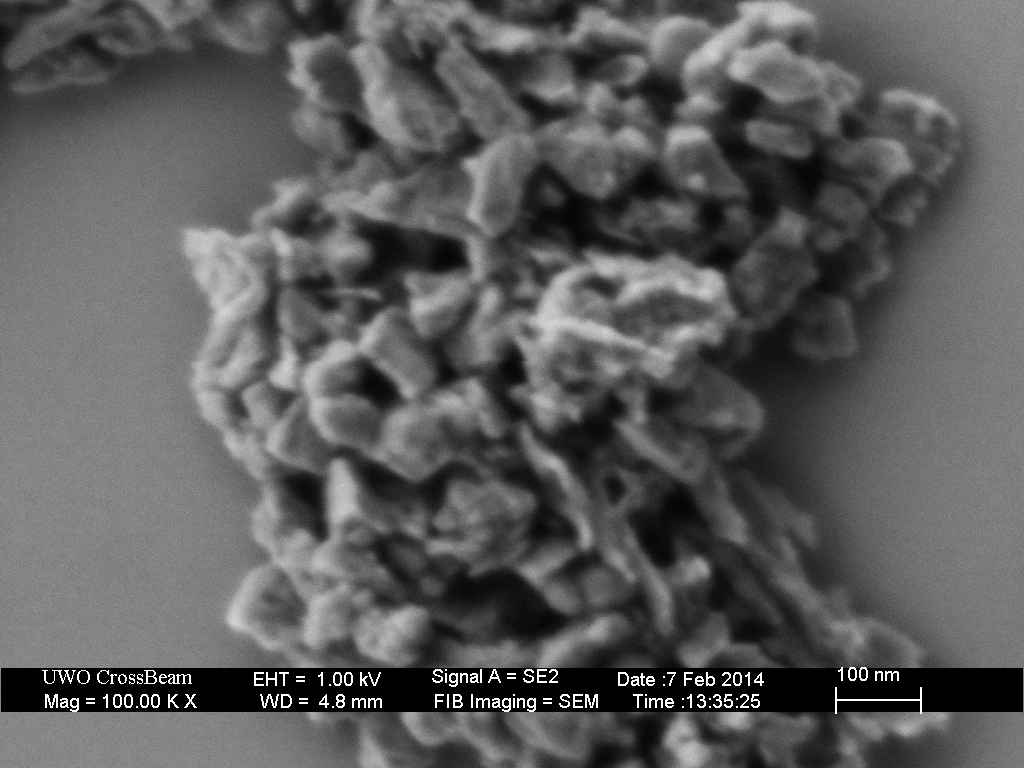

100nm poly-diamond spray

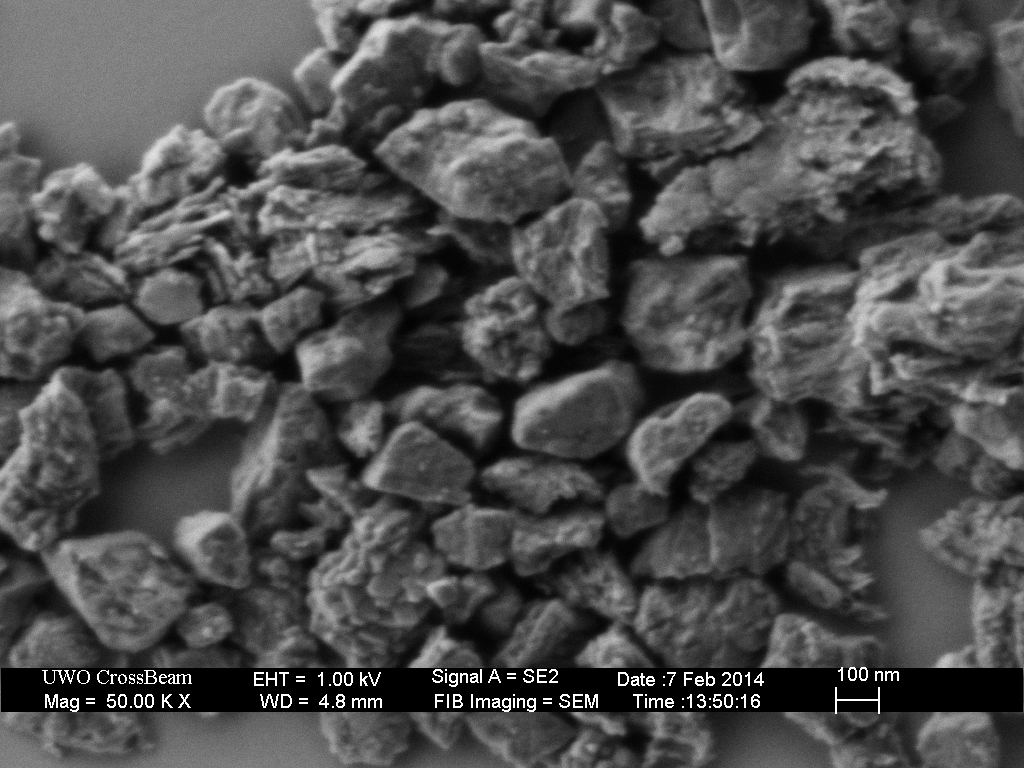

poly_diamond_250nm_03

250nm poly-diamond spray

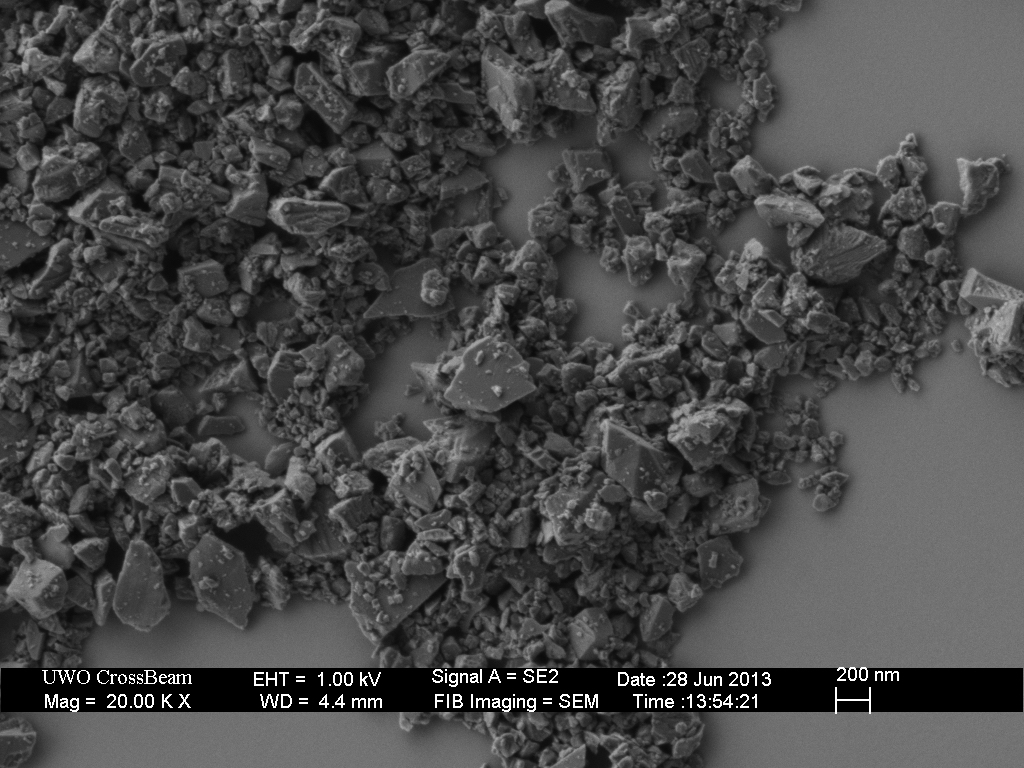

KenS_250nm_cBN_10

250nm cubic boron nitride (CBN) spray.

garnets

Garnets from a Belgian Coticule hone.

Cerium_Oxide

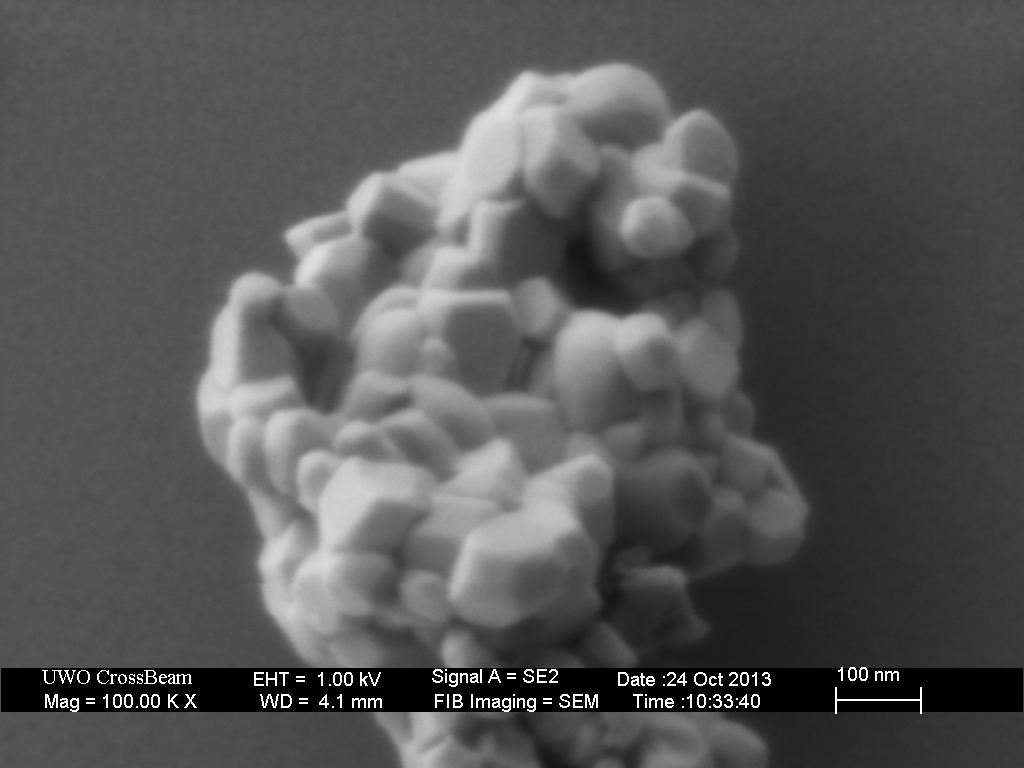

Cerium oxide particle (poly-crystalline).

KenS_250nm_cBN_11

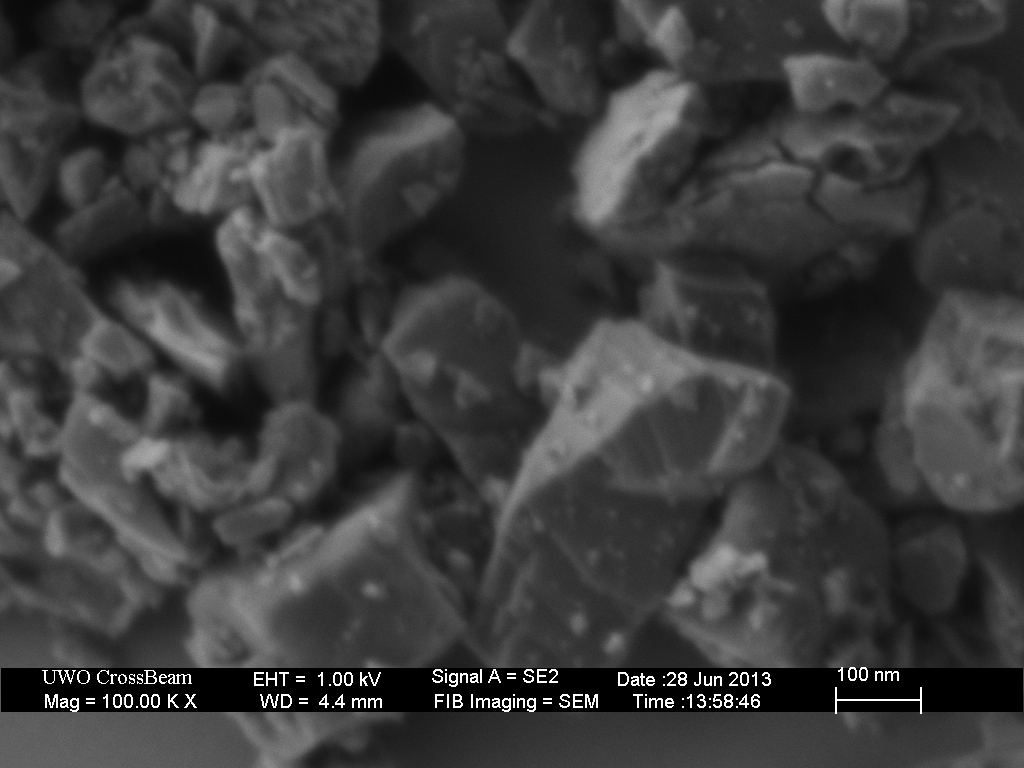

250nm CBN spray.

KenS_250nm_cBN_12

250nm CBN spray

KenS_100nm_cBN_11

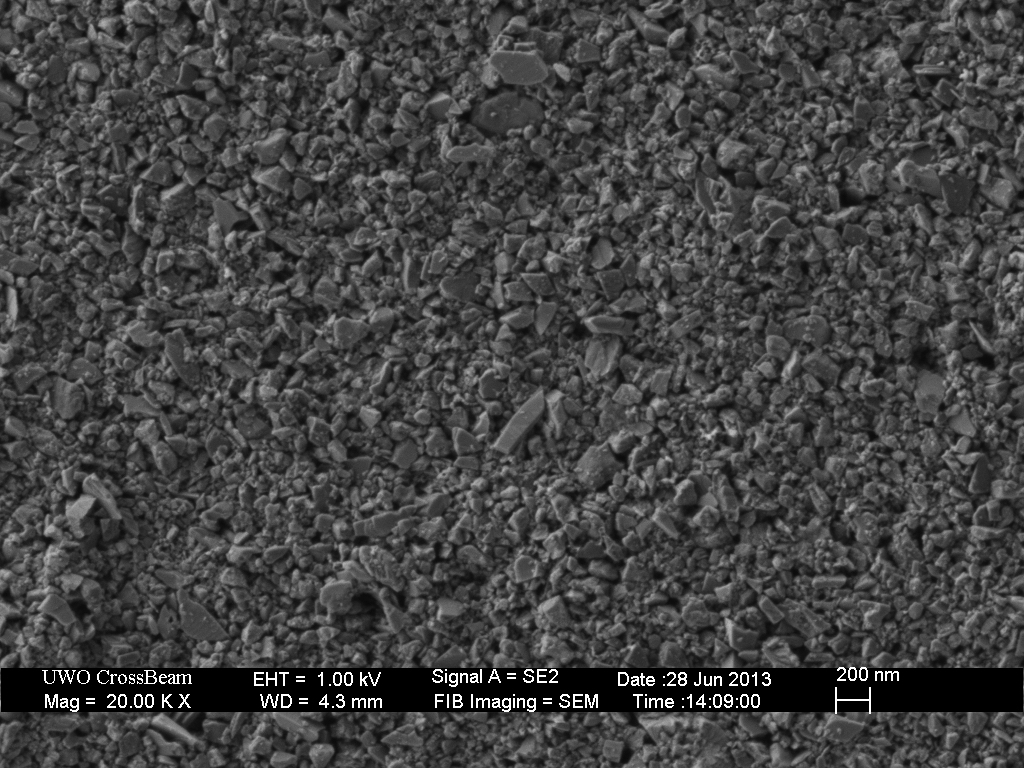

100nm CBN spray.

KenS_100nm_cBN_11

100nm CBN spray.

HA_quarter_micron_03

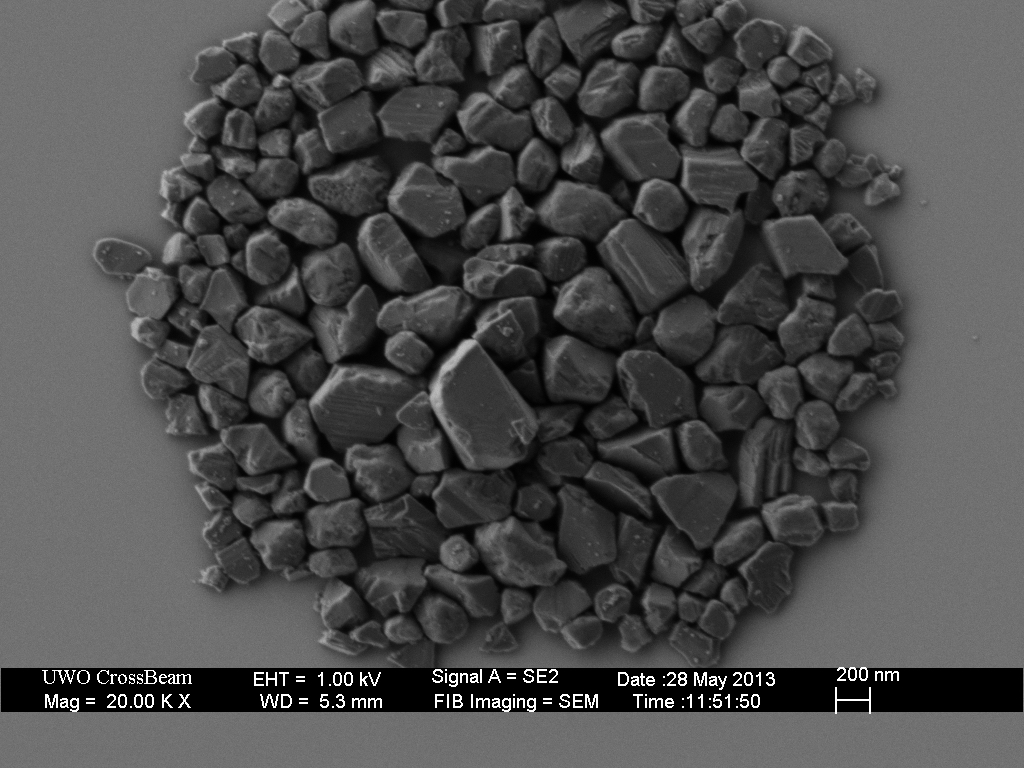

250nm mono-diamond spray.

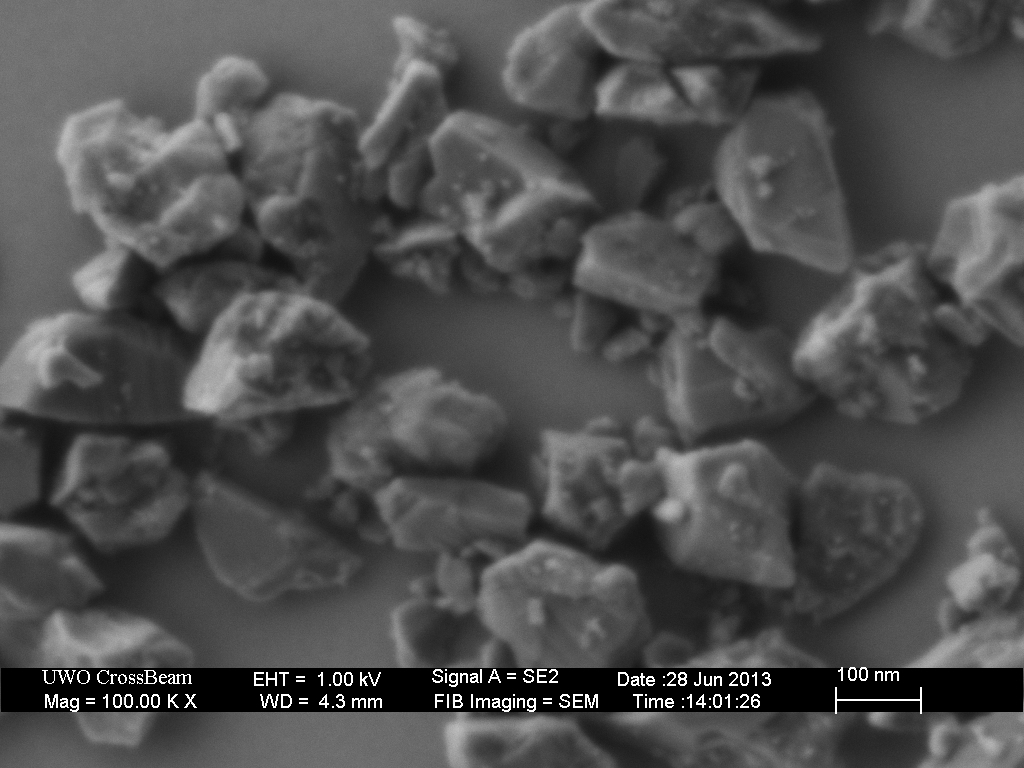

KenS_100nm_cBN

100nm CBN spray.

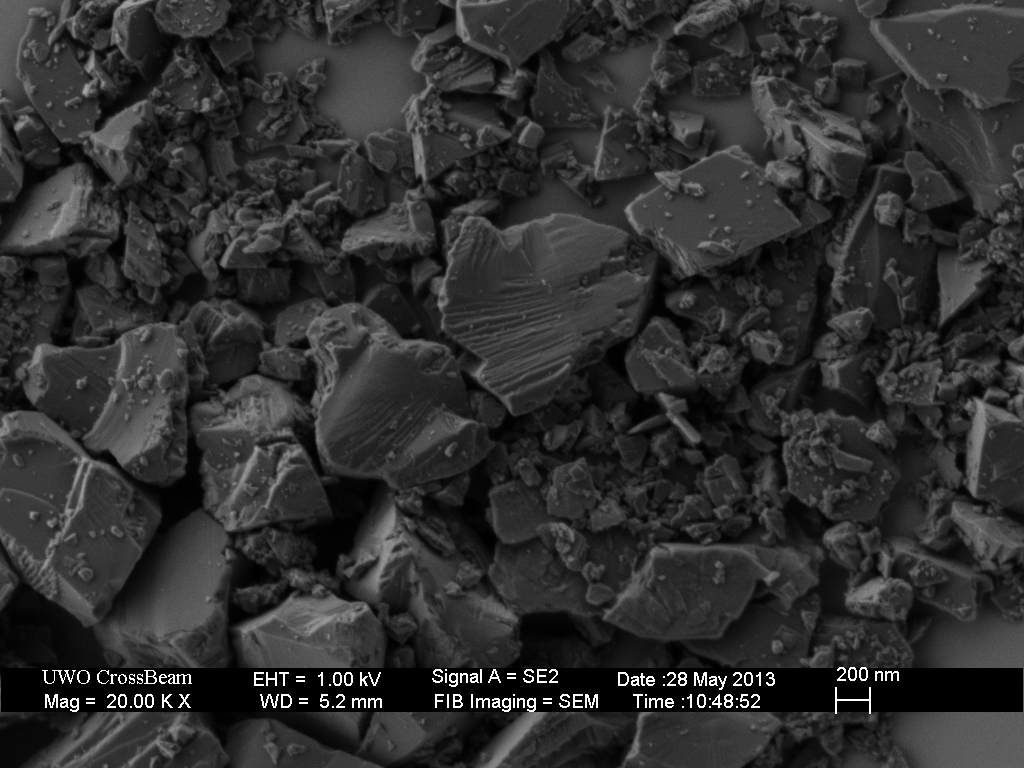

HA_half_micron_04

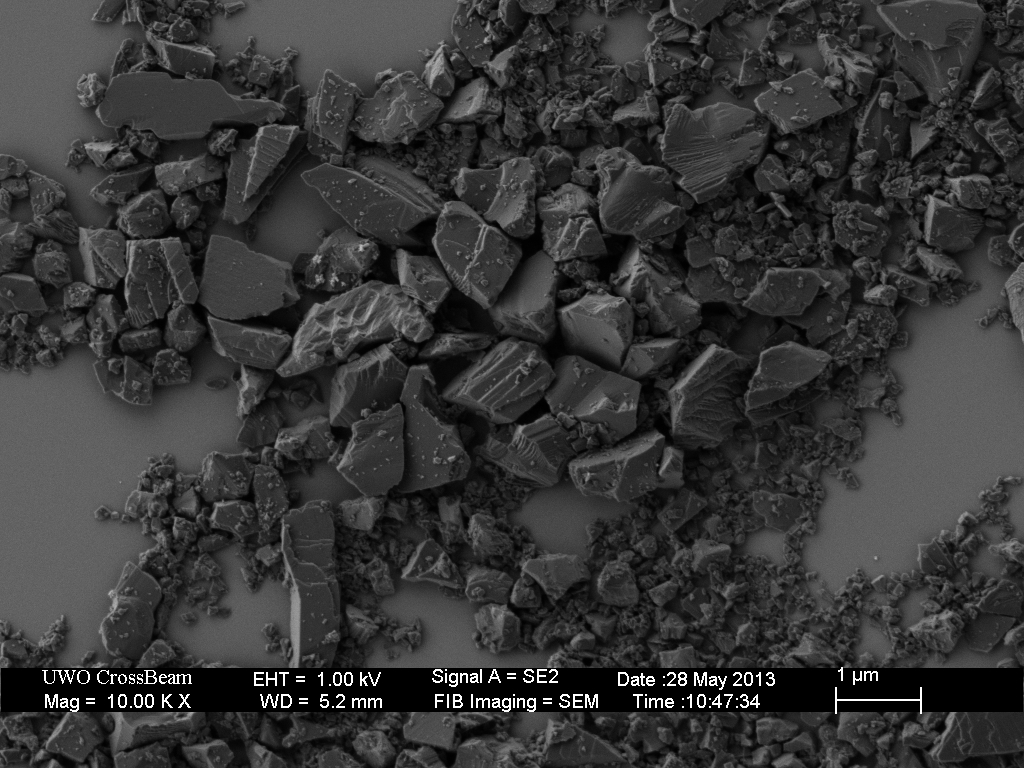

500nm mono-diamond spray.

HA_half_micron

500nm mono-diamond spray.

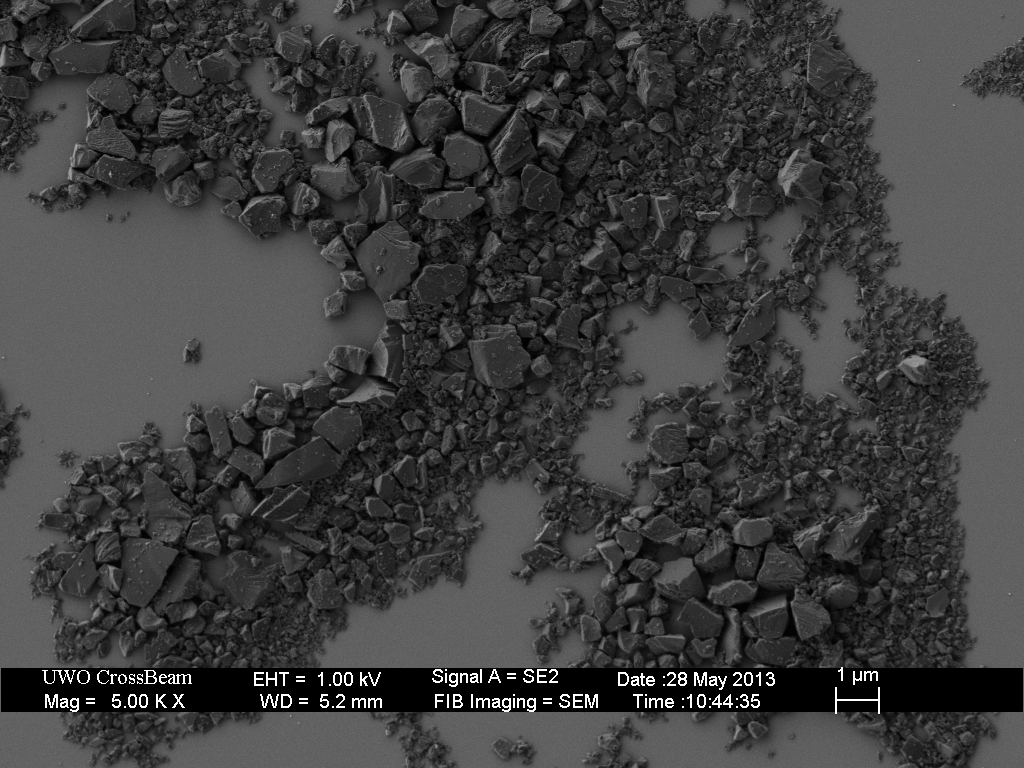

HA_half_micron_01

500nm mono-diamond spray.

Cerium_Oxide_03

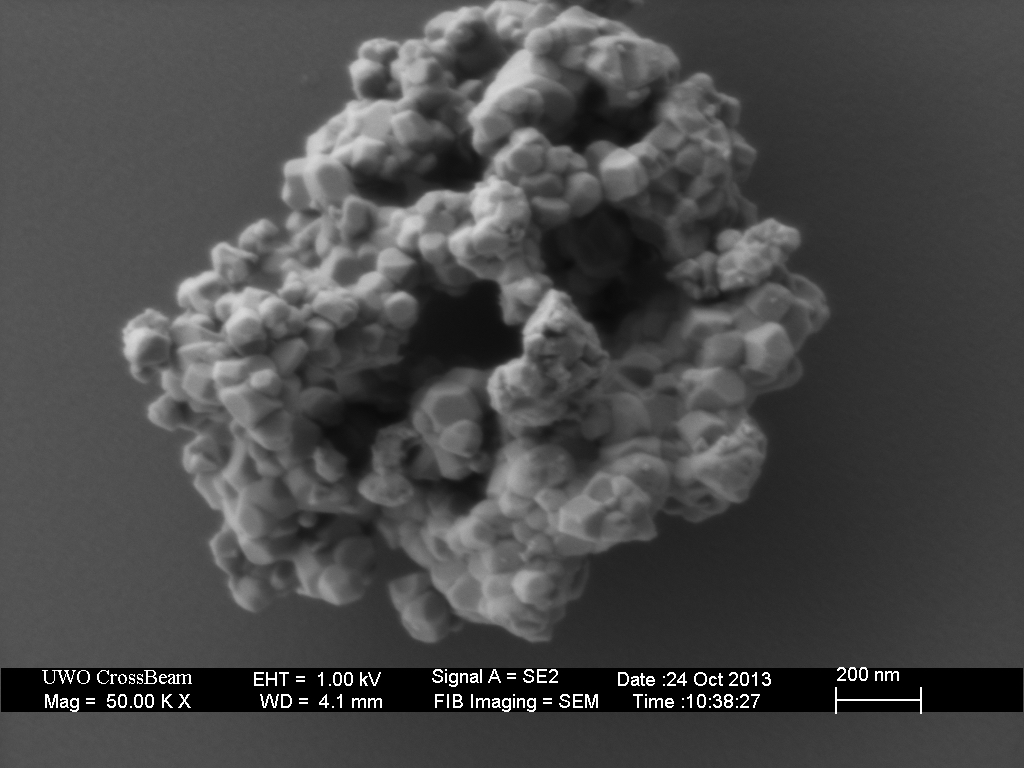

Cerium oxide particle (poly-crystalline).

TI_white_rasoir_03

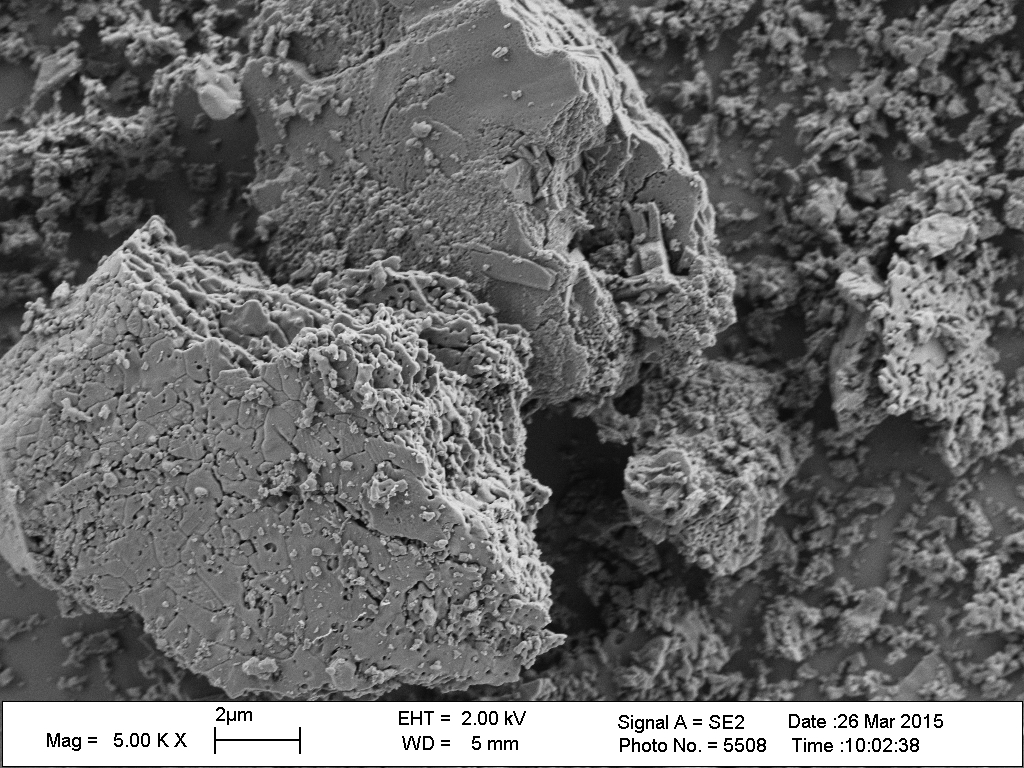

Thiers Issard white Pate A Rasoir.

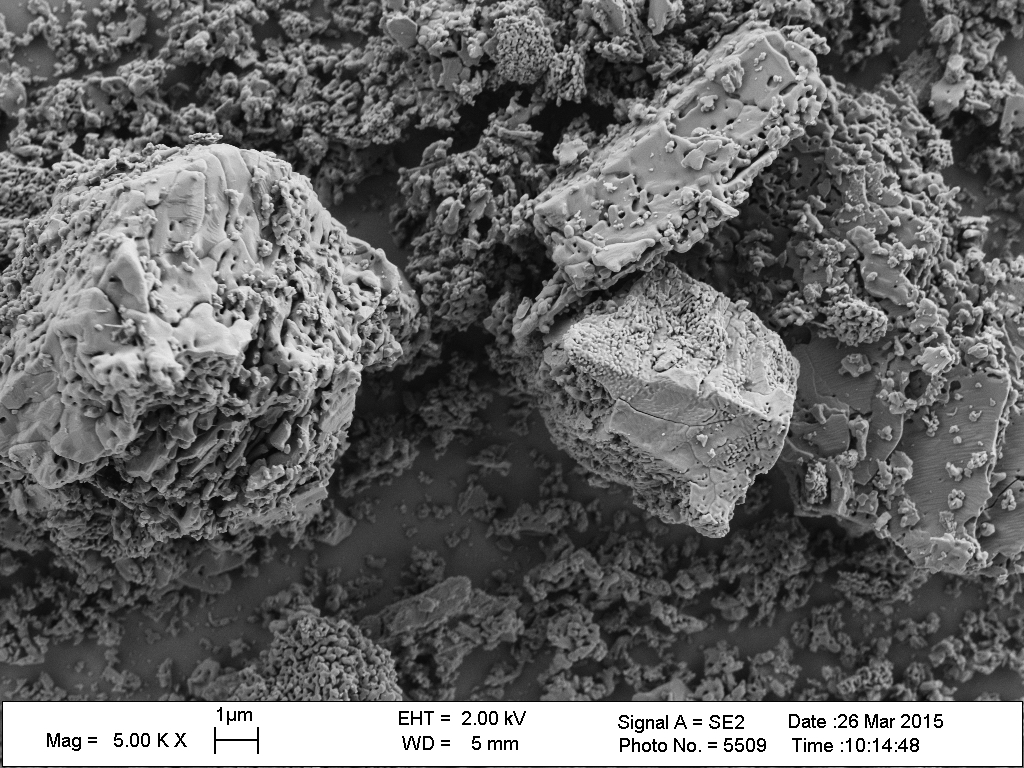

TI_white_rasoir_04

Thiers Issard white Pate A Rasoir.



TI_white_rasoir_06

Thiers Issard white Pate A Rasoir.
